Reaction Injection Molding Vehicle Parts Rapid Prototyping And Manufacturing Economically And Quickly
Reaction Injection Molding (RIM, also named Low-Pressure Injection Molding) is an ideal process to low volume manufacturing the large plastic parts quickly and economically. Firstly, the liquid bi-component polyurethanes are injected into a mixer at certain amount ratio and meanwhile mixed well by the mixer, then the mixture is injected into the tooling cavity quickly at room temperature and low pressure to form the parts.
Reaction Injection Molding Process Steps:
Mixing: two liquid polyurethanes are mixed together in a mixer at certain amount ratio.
Injection: the mixed liquid polyurethanes are injected into mold cavity under low pressure and room temperature.
Reaction: The liquid mixture reacts and cures inside the mold cavity and forms a solid part.
Demolding: The solid part is manually taken out from the mold cavity.
Industry Applications:
RIM is commonly used in the low volume manufacturing or prototyping of automotive, aerospace, medical devices, and consumer goods parts. Such as automotive bumpers & grills, body panels, interior components, aerospace ducting, large enclosures, big housings and medical covering shells.

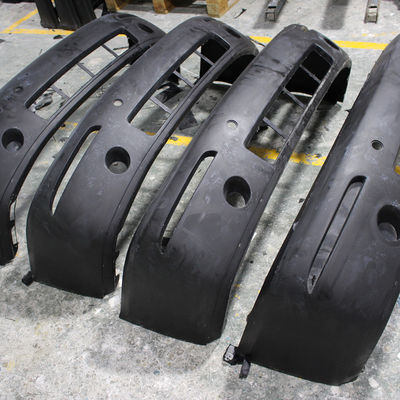

Customer was an automotive design and engineering company in USA, wanted to test impact and high temperature resistance of this bumper by low volume rapid prototypes. Though customer was new to our RIM technique, found it was a proper and economical solution for this project.
The high pressures used cause the plastic to conform to the mold’s shape, thereby generating the part. Like metal die casting, custom plastic injection molding typically produces components that require little or no additional work. Reaction Injection Molding (RIM) is a specialized subset of the injection molding technique that chemically bonds two or more plastics into a polymer before they are introduced into the mold.
RIM Parts Design Considerations:
When designing parts for RIM production, it's important to consider factors such as size, structure, wall thickness, draft angles, and gating. RIM parts can be designed with complex geometries and intricate details, but it's important to ensure that the part design is manufacturable and the tooling favors the design.

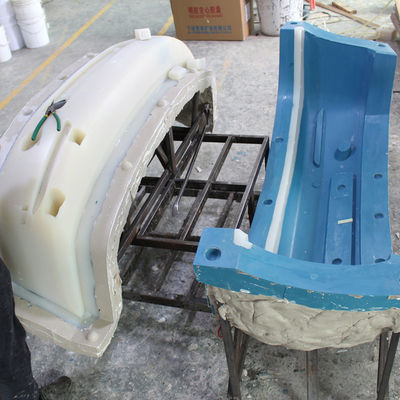

The maximum weight by one shot of injection molding was 35 kilograms, so our RIM process was available for molding the vast majority of parts. Being different to injection molding by steel mold, our RIM had simple demolding system, and worked fine for insert molding and overmolding.
Advantages of RIM Parts:
Thick and Various wall thickness for one part
Excellent mechanical properties
High flexibility, strength and durability
Good chemical resistance
Great impact resistance
Excellent dimensional stability
We are a professional supplier. We know what we are doing. We keep a very stable quality level for years. Thanks to our professional production and technical team, our qualified products rate is 99.75% and we are constantly improving it, we hope our clients can get what they paid for.

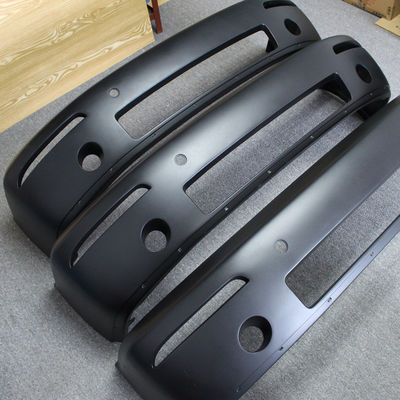

We are the RIM expert in China to provide customers quality RIM material, cheap and rapid tooling, fast delivery, especially for automobile field. The trimmed, deburred, sandblasted and sanded parts. Customer was satisfied with the bumper's flexibility after impact resistance testing.
How does HONKIA compare to other suppliers on price?
Compared to other Chinese suppliers, we choose not to compete on price but to offer the high level of quality, rapid response, and professional results. That’s why some customers cooperate with us for many years, compared with the price, they need a reliable partner to avoid serious losses caused by annoying after-sales service or even the trouble of finding no one.
What if I am not completely satisfied with the parts I receive?
HONKIA will free remake or amend the returned parts that you are not completely satisfied, or refund the full arrived payment, though this is rarely happened in the past. Any disputes based on a subjective or unilateral determination shall be discussed and negotiated to reach a reasonable result. Our continuing business relies on earning your confidence in our ability to meet and exceed the reasonable expectations.
