Reaction Injection Molding Structure Parts Rapid And Cheap Tooling Fast Delivery Quality Guaranteed
Reaction Injection Molding (RIM) is an innovative manufacturing process used to produce the large and complex plastic parts with high flexibility, strength and durability. RIM involves the mixing of liquid bi-component polyurethanes in a mixer at certain amount ratio, then injecting the liquid mixture at room temperature and low pressure into mold cavity where the mixture reacts and cures into a solid part.
Industry Applications:
RIM is commonly used in the low volume manufacturing or prototyping of automotive, aerospace, medical devices, and consumer goods parts. Such as automotive bumpers & grills, body panels, interior components, aerospace ducting, large enclosures, big housings and medical covering shells.
RIM Parts Design Considerations:
When designing parts for RIM production, it's important to consider factors such as size, structure, wall thickness, draft angles, and gating. RIM parts can be designed with complex geometries and intricate details, but it's important to ensure that the part design is manufacturable and the tooling favors the design.

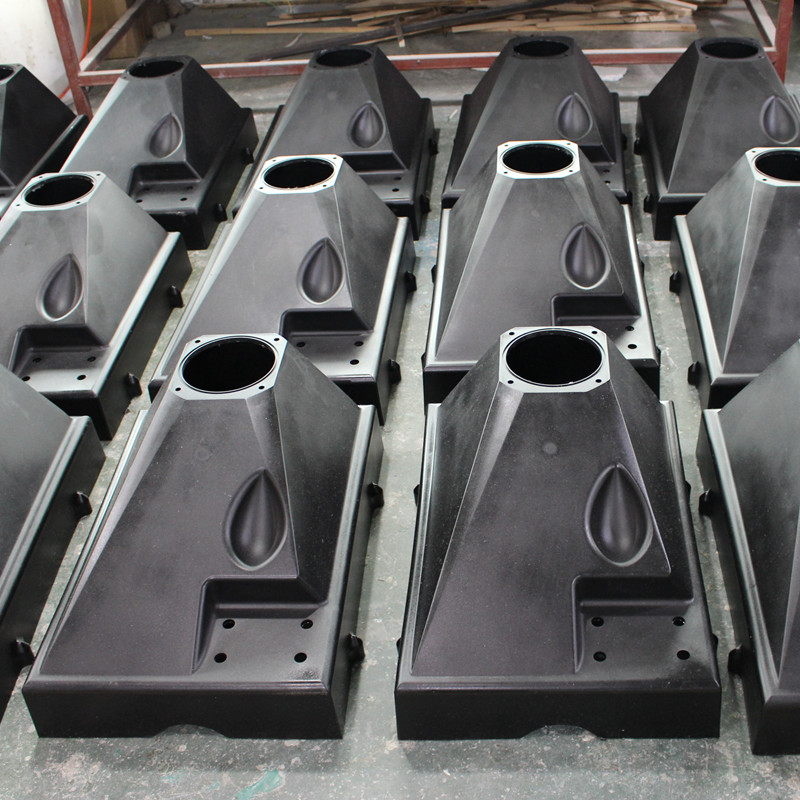

This was an Engine Casing that was originally manufactured by the sheet metal fabrication with lots of welding. To save cost, customer modified the design of this casing to be Reaction Injection Molded. The different wall thicknesses of 5/7/10/20 mm brought challenge to shrinkage control.
The core advantage of our RIM process is the extremely competitive tooling cost, the disadvantage is the part price since costly material and surface finishing. Which means more big size of the part, more competitive the RIM tooling cost, this is why our RIM is very suitable for low volume manufacturing the large plastic parts, such as automobile bumpers, large housings, big covers, etc. Insert molding and overmolding are available for our RIM.

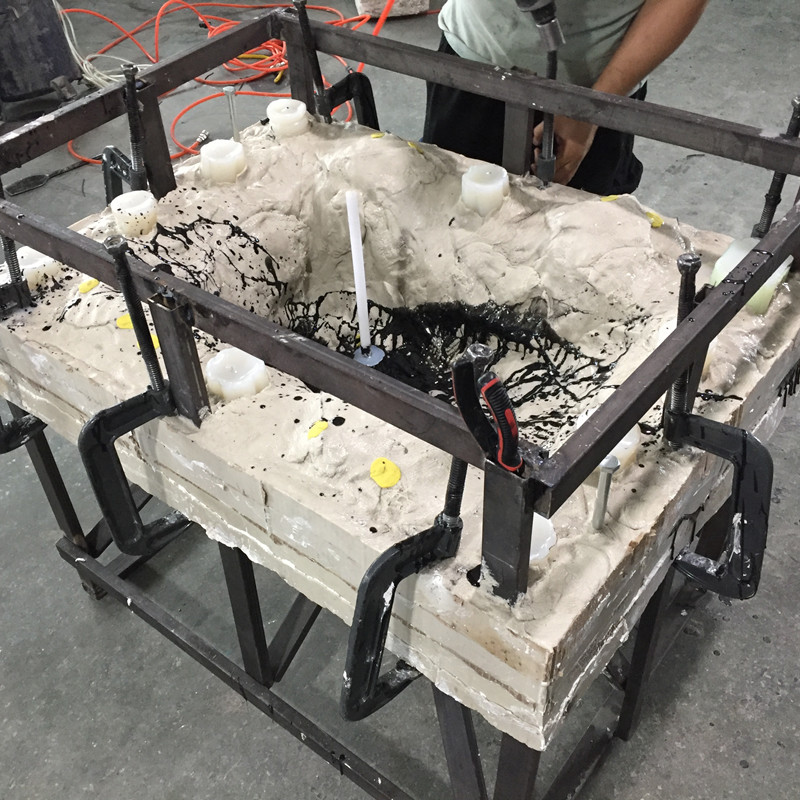

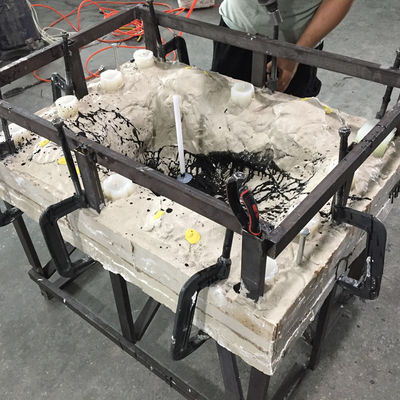

Our RIM tooling was usually made of Epoxy Resin & Silicone Rubber, the silicone rubber pieces were usually replaced after 100 shots. Low-Pressure & Room-Temperature Injection Molding required fairly low mold locking force, thus the simple clamps were fine for our RIM process.
The high pressures used cause the plastic to conform to the mold’s shape, thereby generating the part. Like metal die casting, custom plastic injection molding typically produces components that require little or no additional work. Reaction Injection Molding (RIM) is a specialized subset of the injection molding technique that chemically bonds two or more plastics into a polymer before they are introduced into the mold.
We are respected in RIM industry in China, the RIM service we send out to global market are quick, economical and quality that are proven by the customers used our service, especially from automobile field. We look forward to doing more and better by our continuously improving RIM expertise and experience.
Advantages of RIM Parts:
Thick and Various wall thickness for one part
Excellent mechanical properties
High flexibility, strength and durability
Good chemical resistance
Great impact resistance
Excellent dimensional stability

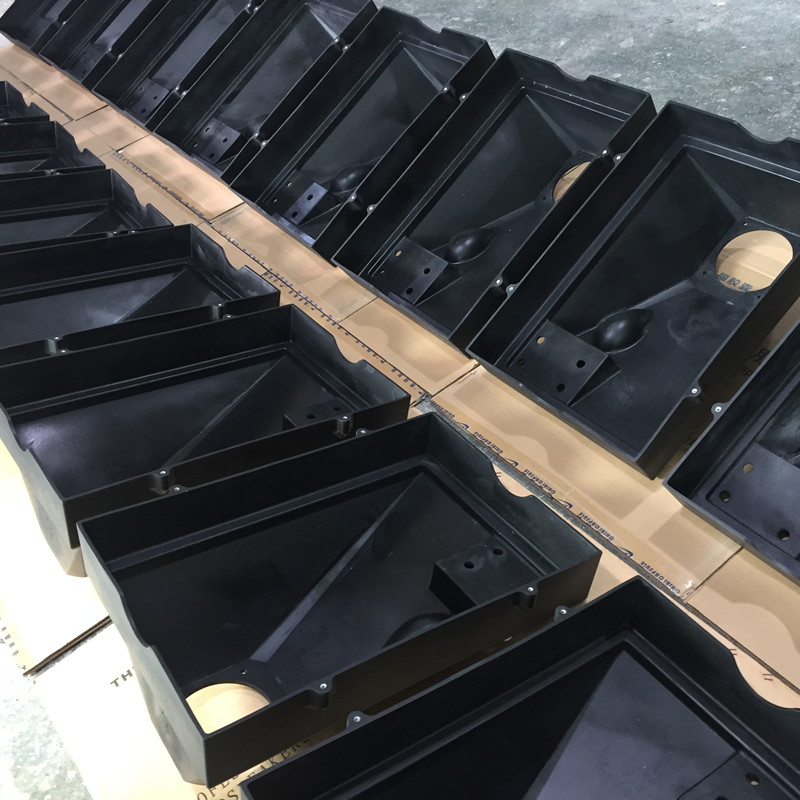

The high strength of our RIM parts had our RIM process low volume manufactured the large shell parts properly, economically and quickly. The finished RIM parts for delivery. The parts were packaged economically and safely to be delivered by cheap sea freight that took around 25 days.
Due to the low injection molding temperatures and pressures, RIM is well-suited for molding large parts with variable wall thickness and smooth surface finishes. We can also benefit from its relatively high turnover rate, which makes it proficient in handling low to middle volume production projects. In addition, RIM parts have high tensile strength, heat resistance, and good resistance to corrosive acids or solvents. However, prolonged exposure to sunlight can degrade polymer-based parts.
